Aprašymas

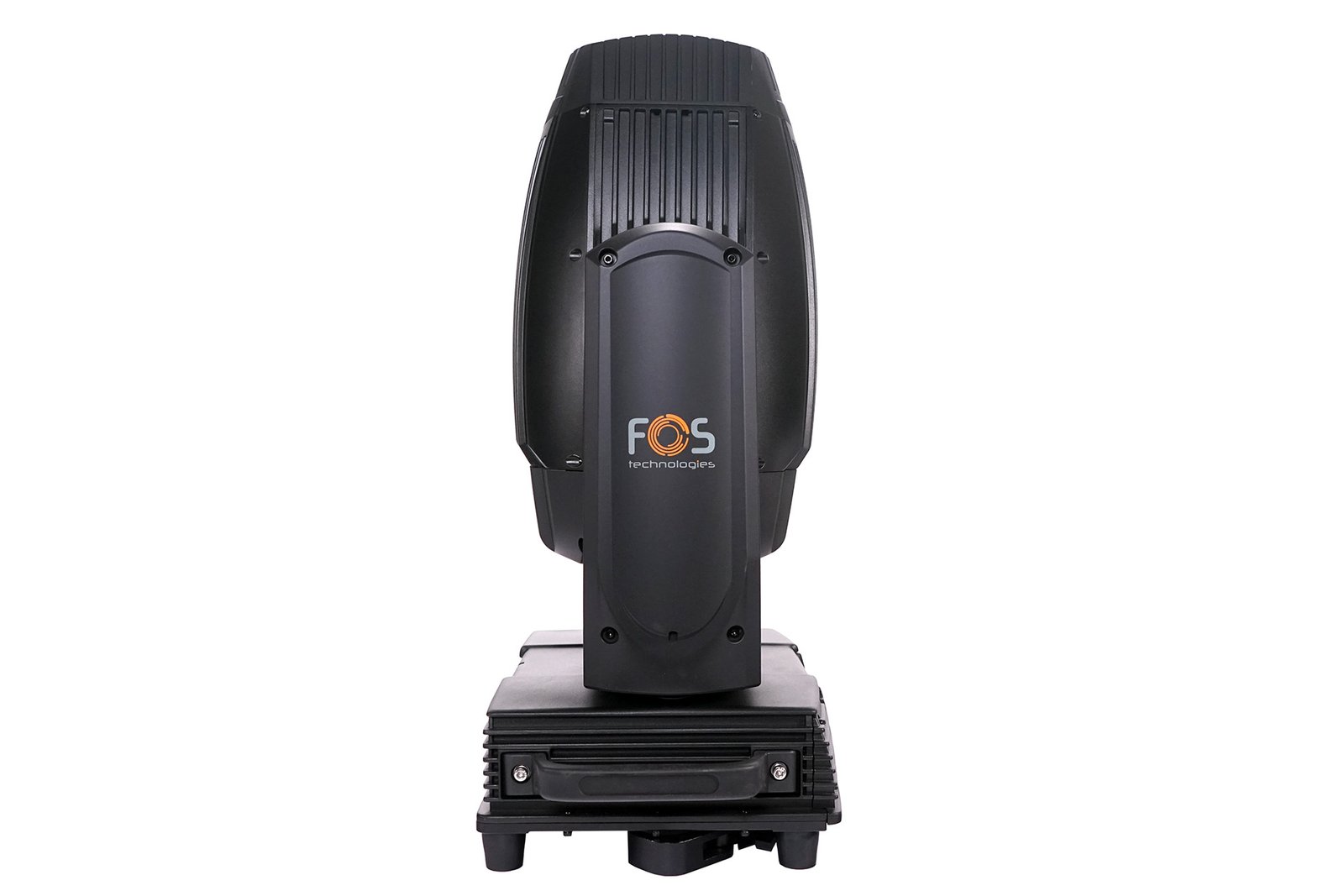

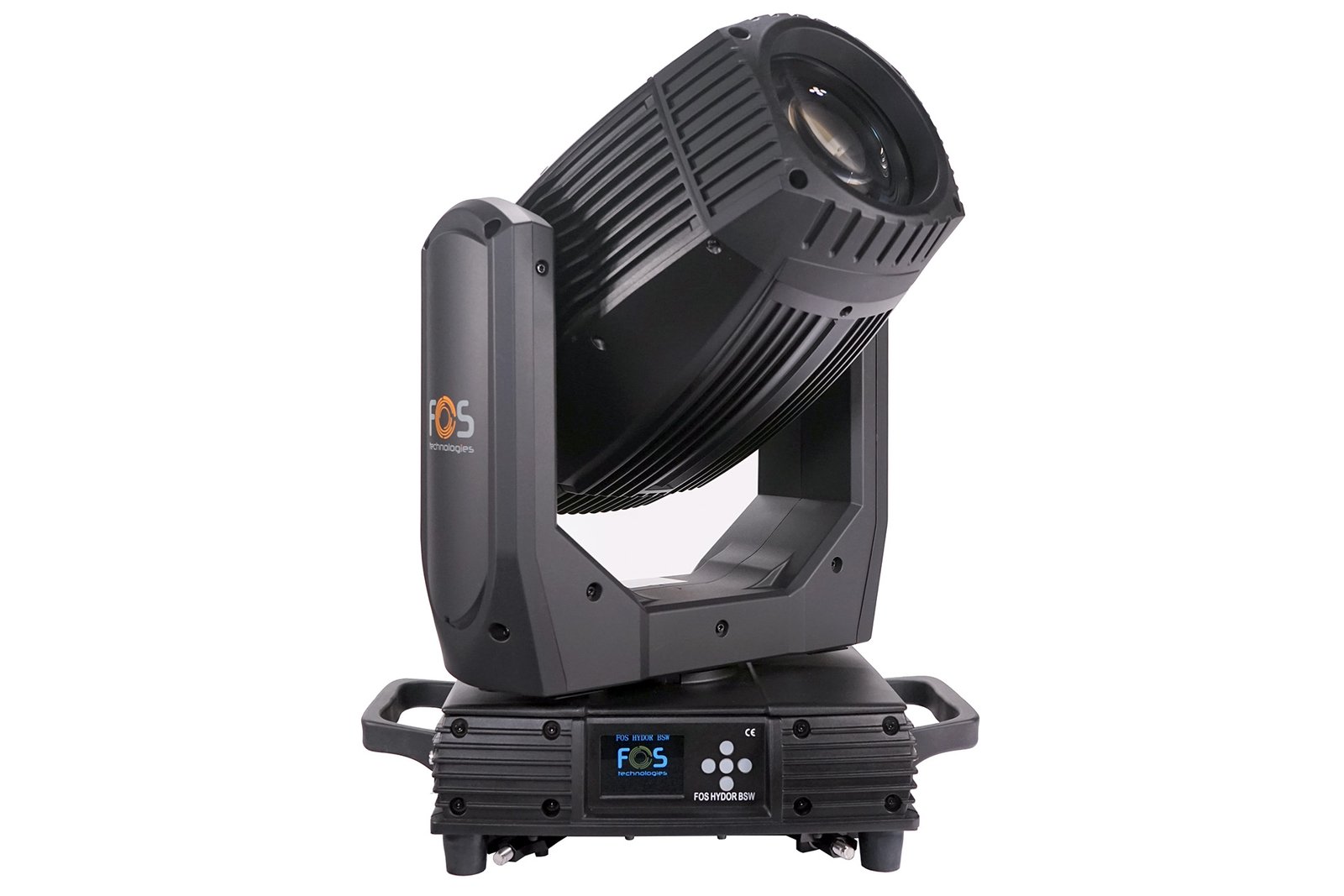

Innovative outdoor IP66 multipurpose Beam/Spot/Wash (BSW) moving head, Light source: White LED 460W, Color Temperature: 6,500K , Zoom: 4?- 40 ?, CRI: Ra?70 , low noise mode 35db, CMY color mixing, linear CTO 6500K-3200K, 9 filters color wheel, 7 rotating gobo, 6 static gobo wheel, Linear dimmer: 0-100%, 4-facet prism, linear frost, DMX512, RDM , 26kg

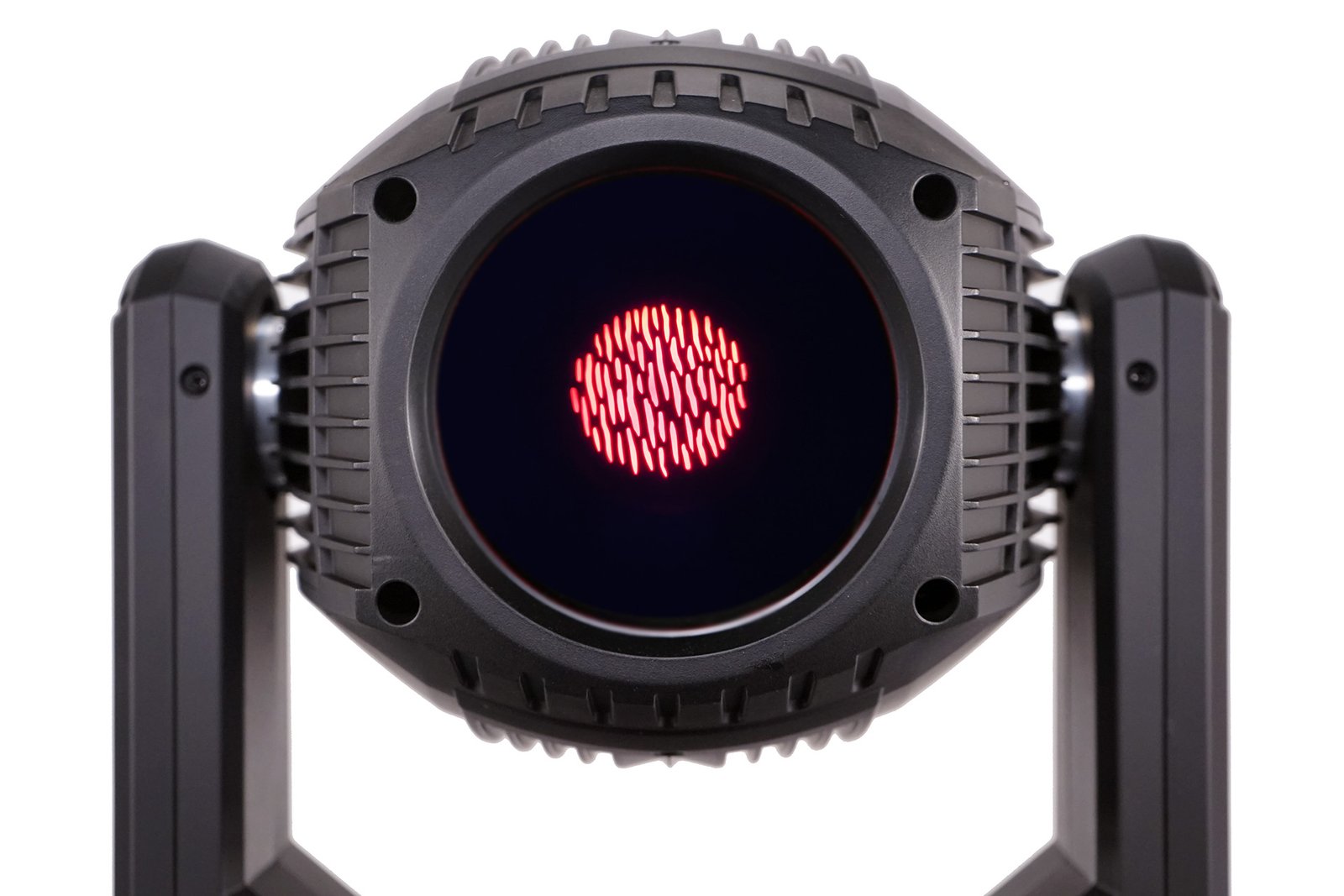

Light Source / Optics
Light source: White LED 460 Watt
Expected life: 20,000 hours.
Color Temperature: 6,500 Kelvin.
Tracking focus for 5 meters to infinity.
Zoom range: 4° to 38° with beam/spot mode, 5° to 40° with wash mode.
CRI: Ra ≥ 70, Ra ≥ 70 (with the high CRI filter on the color wheel).
Mechanical Effects
Rotating gobos with 7 patterns, with shake and scroll function.
Static gobos with 6 patterns, animation effect section, and open, with variable shake and scroll function.
CMY color mixing system, with color macros.
Linear CTO adjustment from 6500 to 3200 Kelvin.
Color Wheel with 9 dichroic filters, including the high CRI filter.
Strobe: 1-25Hz/s electronic strobe, random strobe, pulse strobe from slow to fast, asynchronous/synchronous strobe effect.
Linear dimmer: 0-100% electronic dimmer.
One 4-facet prism, with variable speed bidirectional rotation.
1 independent linear adjustable frost filter.
Movement Range: Pan 540°, Tilt 270° with 16bit resolution.
Control
Power setting: Internal battery, able to control the LCD without power connection
Sleep mode: When disconnecting DMX, the fixture returns to sleep mode automatically
Transmission: DMX signal, update software by DMX
24, 20, and 30 DMX control channels, RDM support.

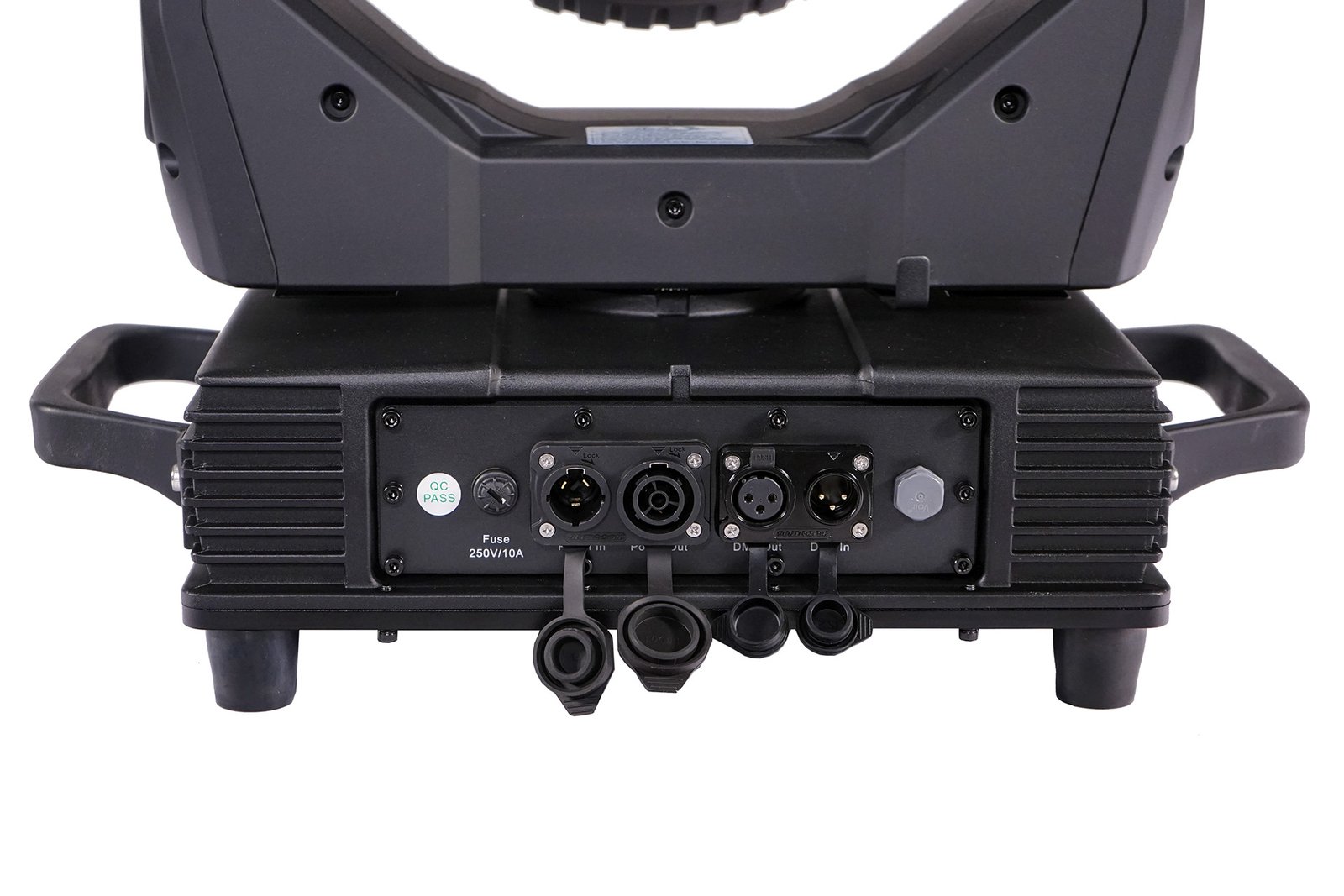

Installation / Dimension details
IP66 rated.
Power supply: 100/240 Volt AC, 50/60 Hz.
Maximum power consumption: 540 Watt, maximum current 5,28 A
Power factor: ≥0.97
Aluminum, iron, and plastic housing material.
Environmental temperature range for operation: -15˚C – 45˚C
Environmental temperature range for storage: -40˚C – 60˚C
Gobo / Color Discs Layout
