Aprašymas
SPECIFICATIONS
Type:

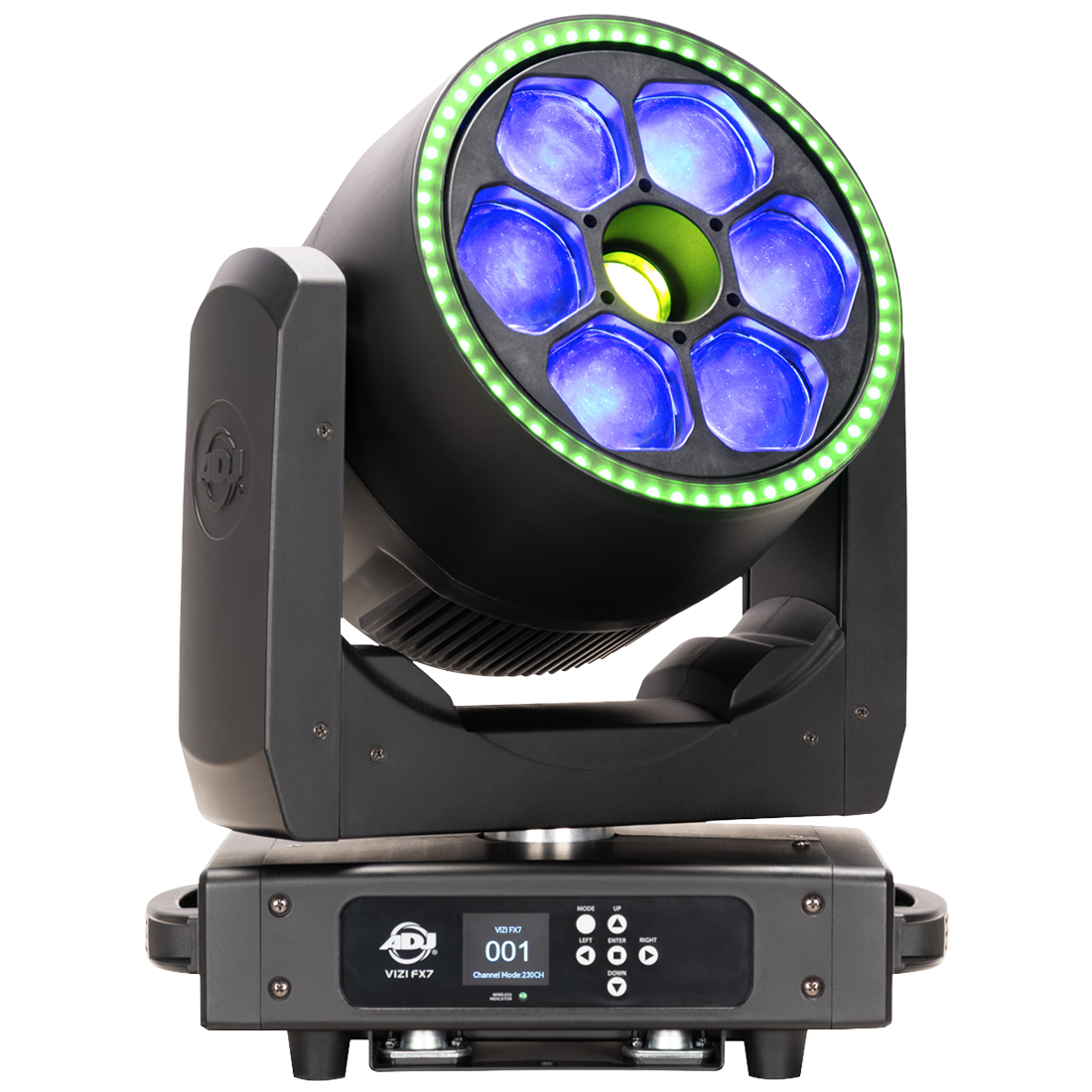

• 420W RGBL Moving Head Beam Effect / Wash
Source:
• Main + Kaleidoscope Center
• 7 x 60-Watt RGBL LED’s
• Color Temperature: 2800K ~ 8,500K
• 50,000 Hour Average LED Life*
• Ring
• 60 x 0.5-Watt RGB LED’s
• 50,000 Hour Average LED Life*
• *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data:
• TBA (Zoomed Out, Full On)
• CRI: TBA
Color:
• Red, Green, Blue and Lime x6 Primary LED’s
• Multi-Color Kaleidoscope Center
• Red, Green and Blue Ring LED’s
• Built-In Color Macros
• 2,700K ~ 10,000K Linear White Color Temperature Control
• Color Temperature Presets: 2,800, 3,200, 3,600, 4,500, 5,000, 5,600, 6,200, 6,800, 7,500 and 8,500K
Effects:
• Bi-Directional Primary LED Beam Rotation
• Individual Primary LED Pixel Control
• Bi-Directional Multi-Color Rotating Kaleidoscope
• Built-In FX Programs with Speed Control
• Motorized Zoom: 8° to 38°
• 1Hz ~ 20Hz Strobe Rate (Electronic)
Control / Connections:
• (4) DMX Channel Modes (31CH / 55CH / 57CH / 60CH and 237CH) Plus 1 User Definable DMX Mode
• DMX and RDM
• Aria X2 Wireless Management System
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0–100% Dimming
• Fan Cooled
• 6 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement
• 5-pin XLR DMX In/Out
• IP65 Locking Power In/Out
Pan / Tilt:
• Pan: 540°
• Tilt: 190°
• 3 Phase Motors
Size / Weight:
• Length: 365mm
• Width: 220mm
• Vertical Height: 434.4mm
• Weight: 13.5 kg
Electrical / Thermal:
• AC 100-240V – 50/60Hz
• Max Power Consumption: 400W (3.7 Amps @ 120V)
• Power Link: 6 units @230V
• Max ambient temperature: -25°C to 45°C
• Max housing temperature: ?°C
Technical Data:
• DB Rating @ 1m.: ?dB
• BTU: ?
• BTU/H: ?
Approvals and Ratings:
• IP20
Included Accessories:
• 1 x Outdoor Locking Power Cable (2m)
• 2 x Omega Brackets (107mm)
Specifications are subject to change without notice.
