SPECIFICATIONS

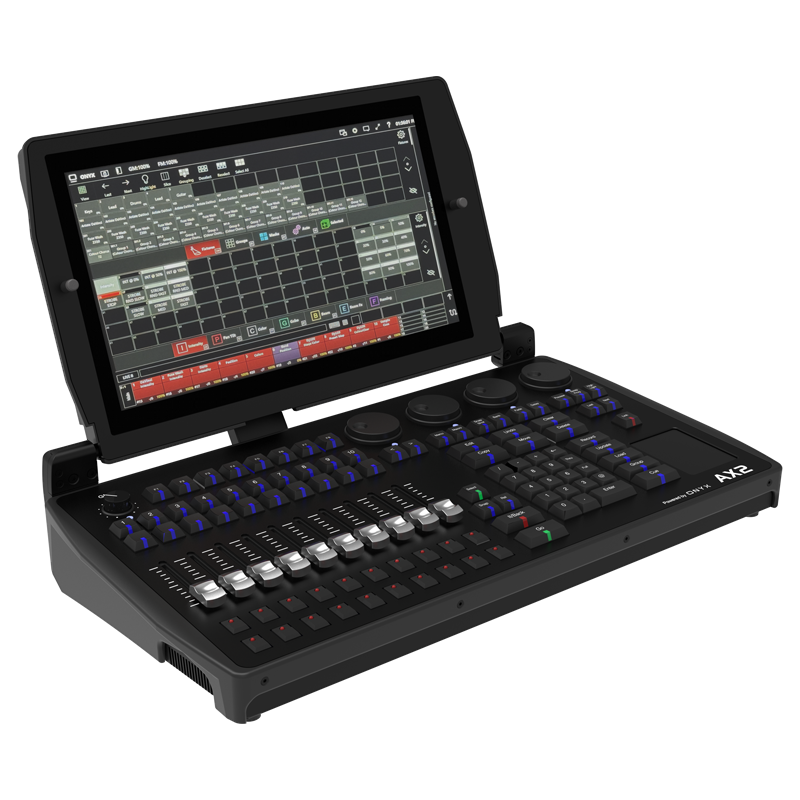

Key Features:
• Powered by ONYX from Obsidian Control Systems
• DYLOS Media Engine with 5 Zones of Pixel Control
• Adjustable 15.6″ Full HD multi touch screen
• 2x external 4K Touch Displays
• 32 Universe integrated processing
• 10 Playbacks
• 8 Encoders
• SMPTE/MIDI
• Keypad and internal 3.5″ touchscreen
• Network, DMX, Timecode and MIDI Connectivity
Control Surface:
• 10 x 60 mm playback faders, each with 4 x function-assignable buttons
• 8 x customizable multi-function keys
• Playback Select button
• Master Go section with Go, Pause, Snap and Release
• 4 x digital rotary encoders with push function and status LED for fixture parameter control
• 4 x screen mounted digital rotary encoders with push
• 3.5″ RGB touchscreen for parameter groups, effect parameters, fanning and global timings
• Grand master rotary fader and button Blind/HighLight/Last/Next buttons
• Full numerical keypad and command keys
• ‘Powered by Onyx’ text on front panel
Hardware:
• Industrial 15.6″ TFT 16:9 touchscreen (1920x1080px)
• 500 GB NVMe M.2 storage drive
• Industrial motherboard with Intel i5 Hexa-Core CPU
• Quiet thermal design using advanced copper heat pipe coolers
• 16 GB DDR4 RAM
• Integrated graphics processor
• Windows 11 IoT Embedded Operating System
• OS installation by USB 3.0 storage device
• Supports Windows USB touchscreens
Connections:
• 4 x DMX / RDM Universe In/Out: 5-pin locking XLR
• External Display: 2x DisplayPort (up to 4K)
• Network: 2x Gigabit for Art-Net, sACN and ONYX X-Net
• Storage and Peripherals: 4x USB 3.0, 1x USB 2.0
• Audio Out, Mic In: 2x 3.5mm Jack
• MIDI In/Out/Thru (MIDI Show Control, MIDI Notes, MIDI Timecode): 5-pin DIN
• SMPTE Timecode In/Out: 3-pin XLR
• 12 VDC power supply input: 4-pin XLR
• Desk lamp: XLR 12V
Physical:
• Length: 300 mm
• Width: 540 mm
• Height: 121 mm
• Weight: 9 kg
Electrical (Power Supply):
• AC mains power to 12 VDC external PSU (included): 100-240 V nominal, 50/60 Hz
• Maximum input current: 3 A
• 12 VDC output: 11 A, 132 W max
Included Items:
• RGB LED desk lamp, angular XLR connector, 13″
• Dust Cover
• USB Cable
• External PSU (12V 11A)
• 1.5 m power cable, 3-pin IEC (EU or US version)
• USB Recovery Flash Drive
• Installation Manual
Specifications are subject to change without notice.
